Full-color LED display installation precautions

Display screen in the process of installation, we work in the early part of some of the places that need attention as much as possible to do the best, so that you can avoid the trouble of maintenance in the later stage, and also allows the equipment to have a longer service life.

Three main protection:
1) moisture
Display the use of the environment as dry as possible, away from water. Electronic components are very afraid of moisture, which will affect the normal use of some precision electronics.
2) dust
As the LED display involves some very precise chips and resistors, etc., dust-like fine particles into these electronic devices, easy to cause short circuit, poor contact, affecting the use of equipment.
3) heat dissipation
Heat dissipation is an important thing at any time, the choice of operating temperature between -40 ℃ ~ 80 ℃ industrial-grade integrated circuit chip, try to prevent the temperature is too low resulting in the display can not start. Although the LED display itself has a good heat dissipation system, but we still need to pay attention to the use of the environment of heat dissipation.

Universal installation method:

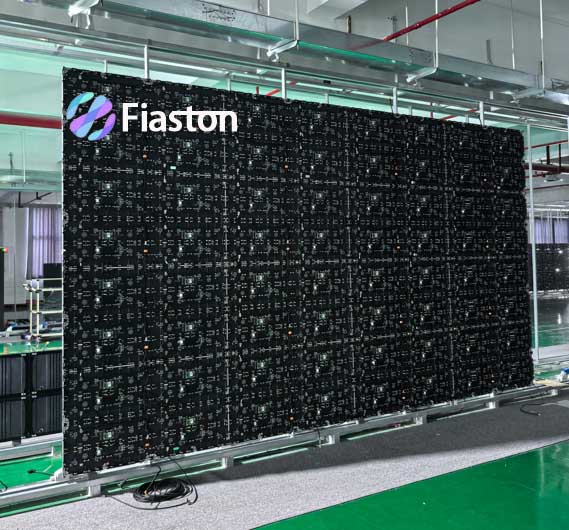

1) splicing
Cut the outer frame of the fixed box according to the size and assemble the splicing.

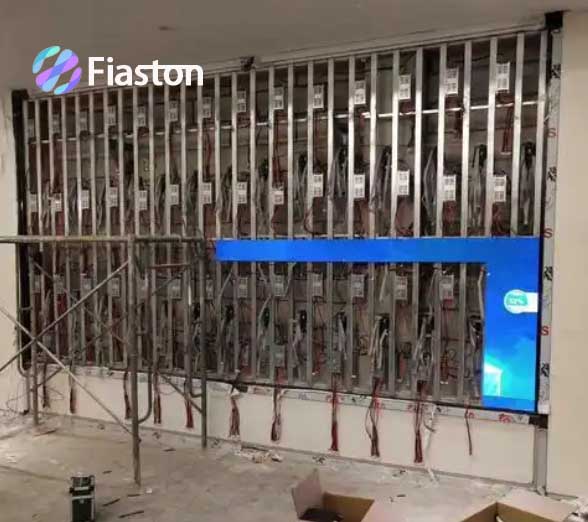

2) Fixing
Place the LED display module (unit board) in the fixed frame. It is necessary to pay attention to the position of the mounting backstrip must be accurate.

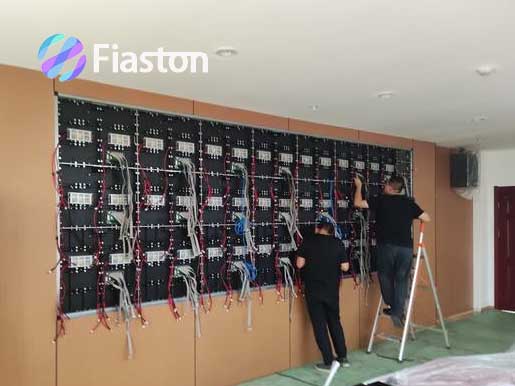

3) Connection
When the display screen module and the frame are installed and fixed, the row of wires, control card, power cord in turn, according to the instructions labeled positive and negative poles to connect.
4) Test
In the process of installation, it is not necessary to test after the completion of all security, you can access the signal, while installing, while testing.

The above content is organized by Fiaston full-color LED display general installation, any LED display product installation and maintenance, after-sales can contact us to communicate.
